Quick answer: In sealed electrical enclosures that cycle temperature — EV controllers, battery packs, energy-storage containers, 5G radio units — warm humid air hits a cold surface below its dew point and condenses, and that condensation corrodes electronics over time. One-way desiccants can't solve it: they saturate, have a short service life, and calcium/magnesium-chloride types can cake or leak corrosive liquid. A two-way reversible humidity pack instead regulates the microclimate, adsorbing and releasing moisture to block condensation before it forms — with a service life over 10 years and performance decay under 20%.
Condensation inside an electrical box is a slow, quiet failure. It doesn't announce itself until a controller corrodes or a light fixture fogs. Because these enclosures cycle temperature by design, the usual desiccant playbook doesn't fit — here is why, and what does.
How condensation forms in a sealed enclosure
Four conditions combine: a temperature difference (warm humid air meets a cold surface), high air humidity (more water vapor available), a surface below the dew point (cold glass or metal), and poor ventilation (humidity can't escape). When the surface drops below the air's dew point, water vapor condenses into droplets — on lenses, boards and metal.
Why traditional fixes fall short
Physical solutions (vents, membranes)
Breather vents and waterproof membranes mainly manage pressure difference; reducing condensation is a side effect. They disperse and transfer moisture rather than eliminating it, can admit dust that clogs the path, and often only work while the device is powered/warm.
Chemical one-way desiccants (calcium/magnesium chloride)
These can't stop condensation from forming — they only mop up afterward, and long-accumulated condensate still corrodes components. They are one-way with a short service life (often under 2 years), and as powder-based products they can cake or turn to slurry after absorbing water, carrying a real risk of corrosive-liquid leakage near sensitive electronics.
The two-way approach: regulate, don't just absorb
A reversible moisture-regulating pack is a two-way material: within a defined temperature and humidity range it adsorbs when the air is too humid and releases when it's too dry, holding the enclosed microclimate away from the dew point. Because it controls the rate of adsorption and desorption, it can intercept condensation before it forms rather than reacting to standing water. Its performance profile:
- Service life over 10 years, with performance decay under 20%.
- No liquefaction, no leakage — the surface stays intact and dry, with no water droplets, so it is safe next to electronics.
- Rate-controlled — neither too fast nor too slow, staying in dynamic equilibrium with the environment.
- Reusable and low-cost over its life versus repeated desiccant swaps.
The underlying two-way mechanism is the same one described in the certain-humidity principle and the science of fiber desiccant.
Where it's used
Any relatively sealed electrical microenvironment that sees temperature change:
- New-energy vehicles: drive motors, intelligent/assisted-driving control domains, and headlight/lamp housings.
- Energy storage: battery packs, battery clusters, and energy-storage containers.

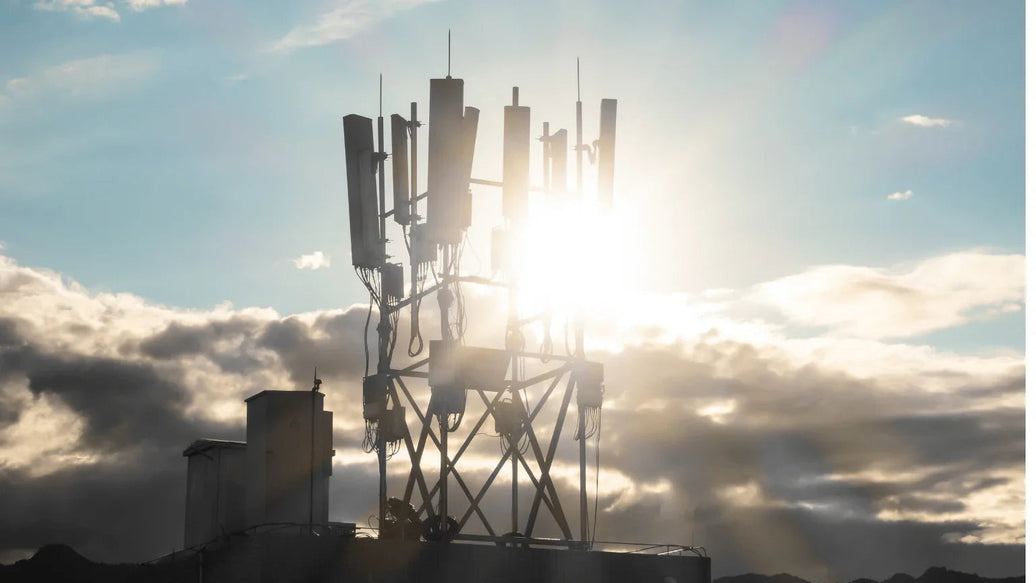

- Telecom: 5G/4G base stations, RRU and AAU radio units.
- Outdoor equipment: monitoring cameras, power cabinets, and similar sealed units.
For enclosures that also need active management and monitoring, the two-way materials integrate with the Humigic thermo-hygro management system for energy-saving humidity control.
FAQ
Can I just use more silica gel or calcium chloride?
More one-way desiccant delays saturation but doesn't stop condensation forming, and doesn't change the leak/short-life limitations. The mechanism, not the quantity, is the issue.
How long does a two-way pack last?
Over 10 years with under 20% performance decay in the specified range — far beyond the ~2-year ceiling typical of one-way chemical desiccants in this duty.
Is it safe directly inside an electronics enclosure?
Yes — it doesn't liquefy or leak, so there's no corrosive-slurry risk against boards and connectors, which is the main failure mode of powder desiccants here.
Does it need power?
No — the material is passive and self-adaptive. Power is only involved if it's paired with a smart monitoring/management system.
Fighting condensation in a sealed enclosure?
Tell ATMOSIScience the enclosure type, volume and temperature range — the recommendation will be a two-way pack sized to hold the microclimate off the dew point, not a one-way desiccant that saturates.
