Engineered
against
condensation.
A bidirectional humidity-control fiber that keeps sealed electronics dry — from EV battery packs to wind nacelles, solar inverters and 5G cabinets.
Every temperature swing puts water inside the enclosure.
Air cools to its dew point and moisture condenses on the coldest surface — the one your electronics sit on. Sealing tighter does not stop it.
-
Short circuits & leakage
Condensate bridges tracks inside the cavity and takes the board with it.
-
Blinded optics & sensors
A fogged lens suspends camera, lidar and driver-assistance functions.
-
Corrosion & early scrap
Metal oxidises, insulation degrades, thermal paths lose efficiency.
It absorbs. Then it gives the moisture back.

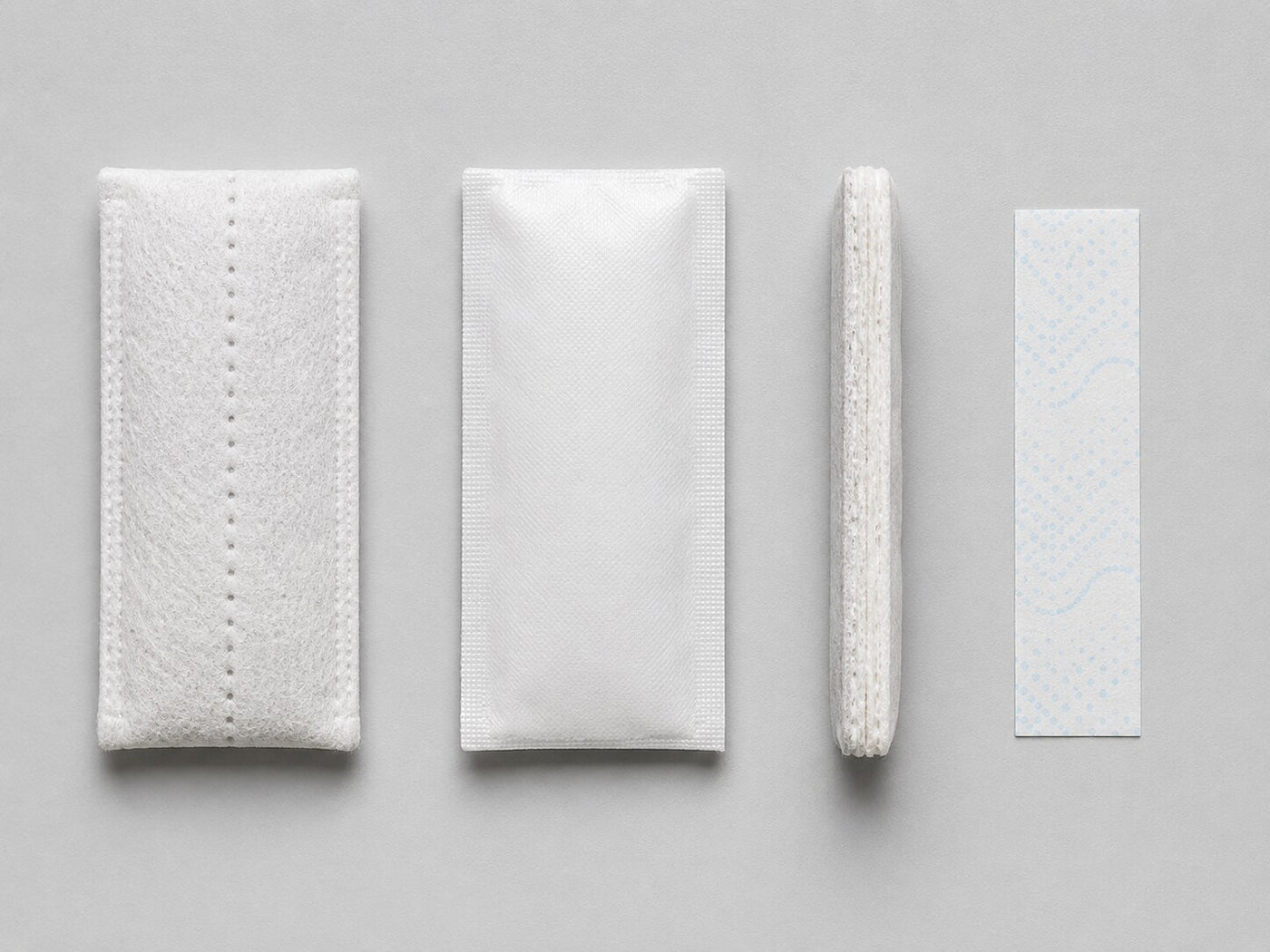

A 2-way humidity-control fibre core inside a microporous breathable film — it breathes with the cavity instead of filling up and failing.
-
Absorbs when the air is wet
Over 100 % of its own weight in 24 hours at 40 °C / RH 95 % — with no seepage.
-
Releases when the air dries
A desiccant fills up and quits. This fibre swings both ways, indefinitely.
-

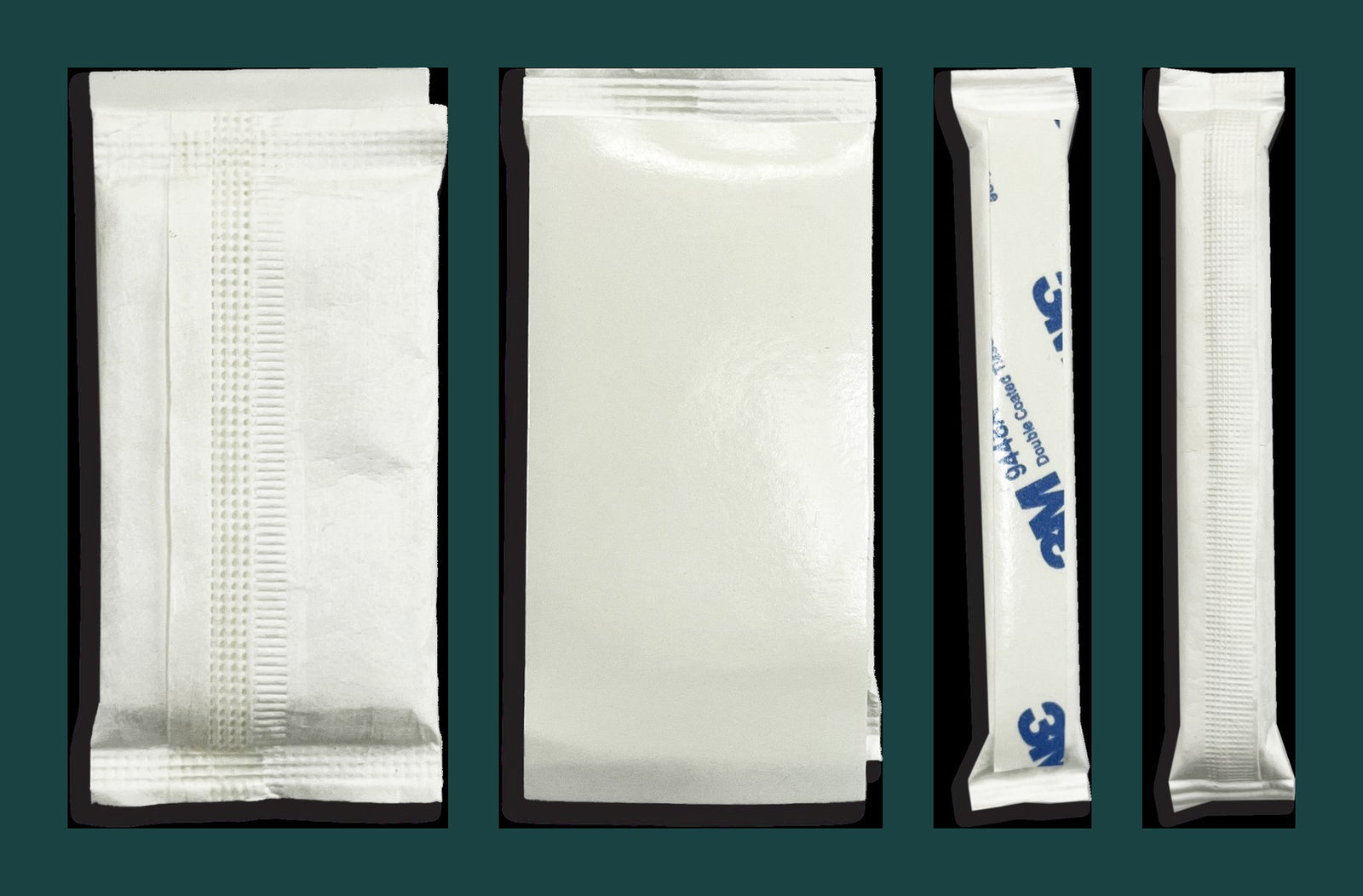

Peels and sticks in seconds
3M backing, 61 × 30 × 4.5 mm, under 4 g. No power, no wiring, no service.
- Pack size61 × 30 × 4.5 mm · customizable
- Temperature−55 °C to 125 °C
- ChemistryHalogen-free · non-corrosive · RoHS
Validated to automotive endurance.
Everything else we protect — grid, wind, solar, telecom, drones — sits inside the envelope a car already demands.

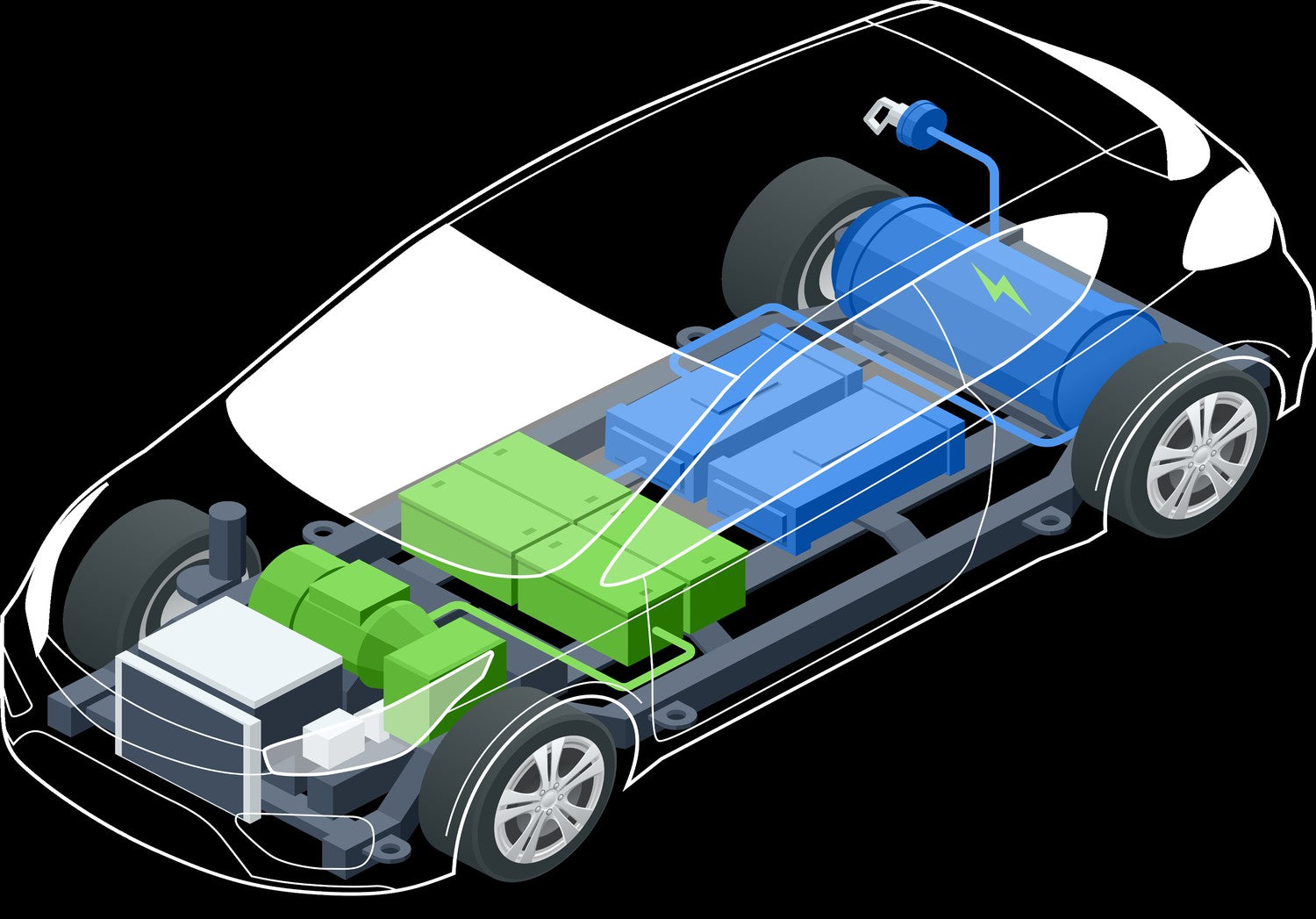

Eight cavities in a single vehicle.
Peel the liner, press it to any clean inner surface, close the housing. Nothing to wire, nothing to service.
- High-voltage battery pack
- Battery management system
- Driving domain controller
- Motor & inverter housing

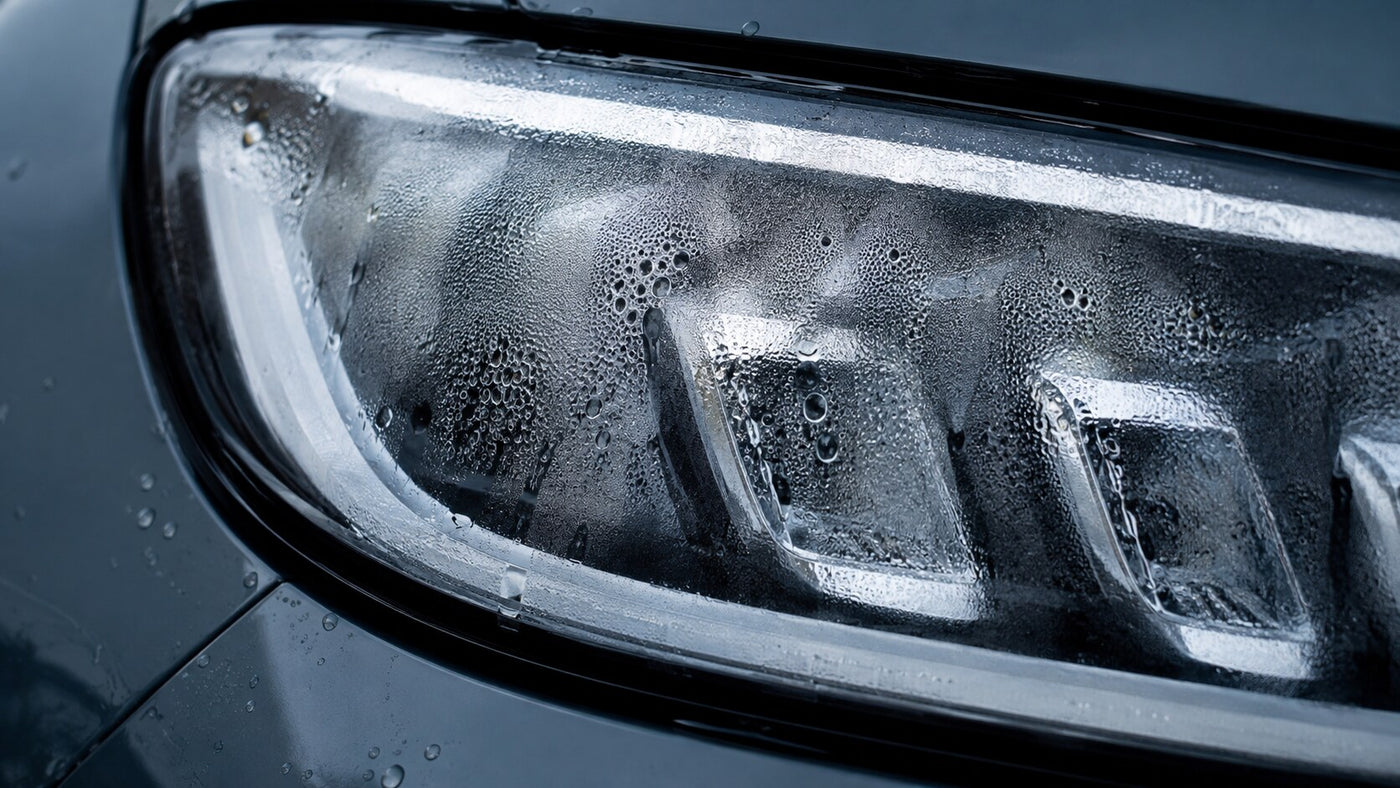

- Headlights & tail lights
- ADAS cameras & sensors
- Charging port assembly
- Module & ECU enclosures
Eight industries, one failure mode.
Anywhere a sealed cavity meets a day–night temperature swing, condensation forms. The same pack solves it.
EV & e-mobility
Battery packs, BMS, motors, domain controllers, lamps and ADAS cameras.

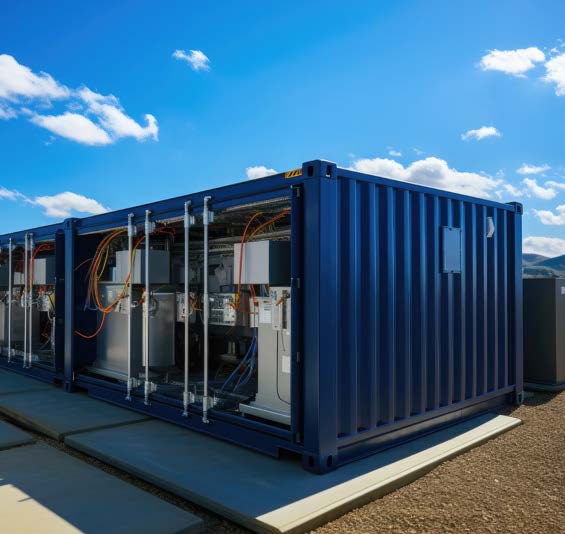

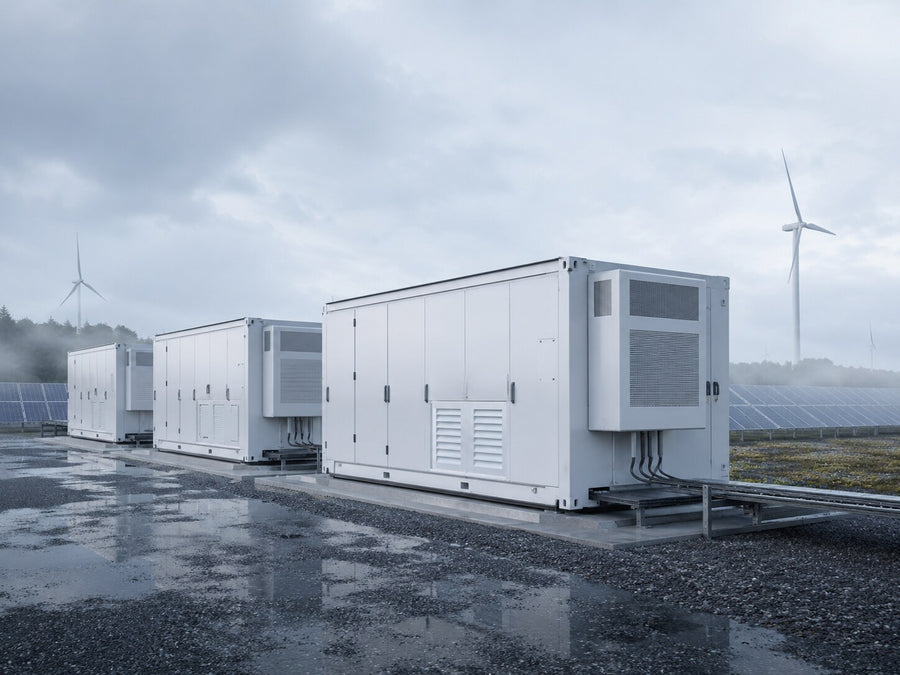

Energy storage
BESS container enclosures and BMS cabinets on outdoor humidity cycling.

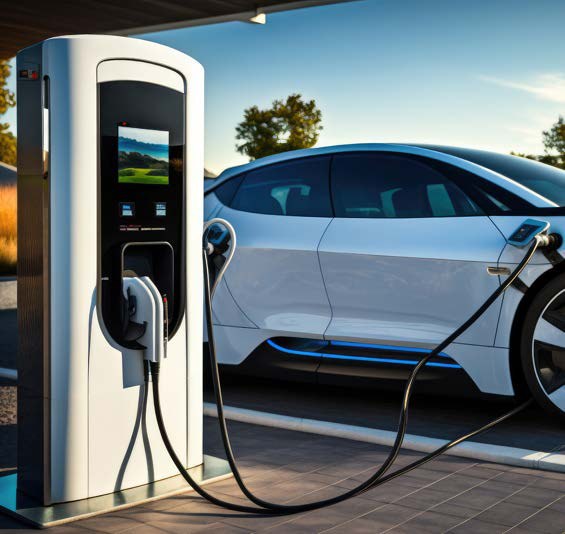

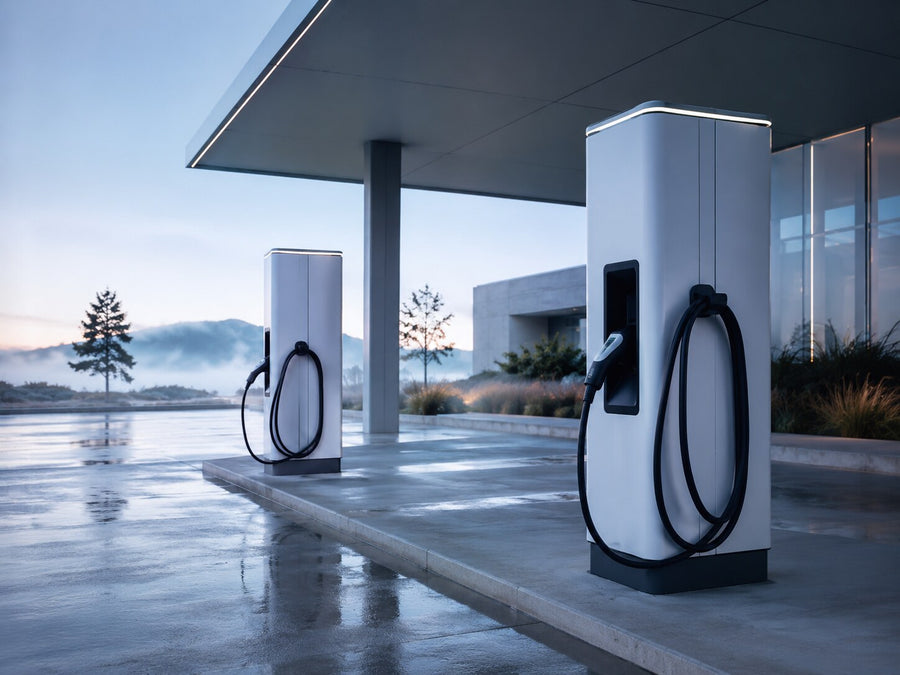

EV charging
Sealed power electronics and connectors that must stay dry every cycle.

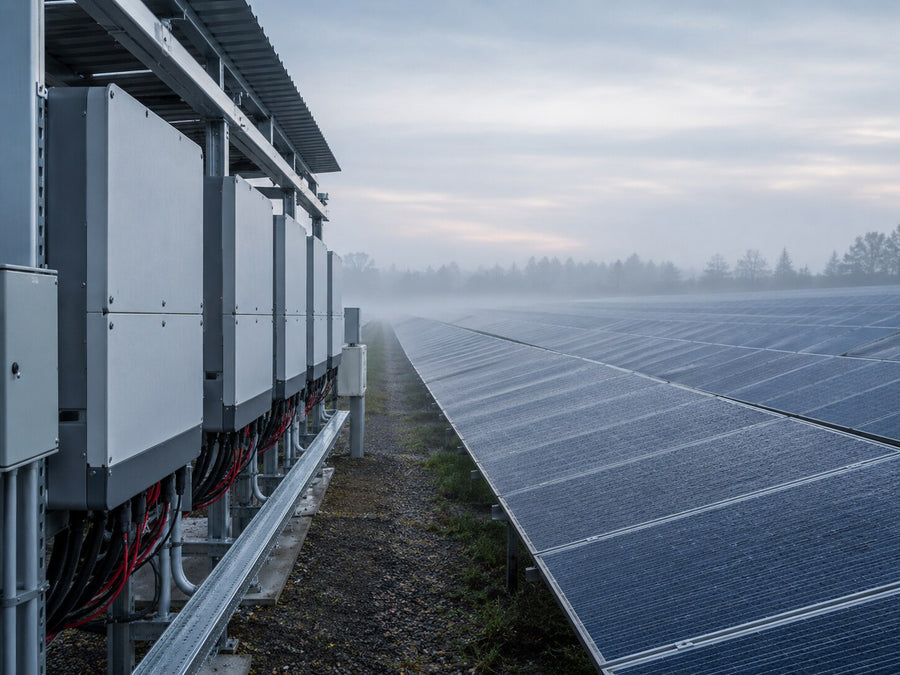

Solar PV
String inverters, combiner boxes and junction boxes in the field.

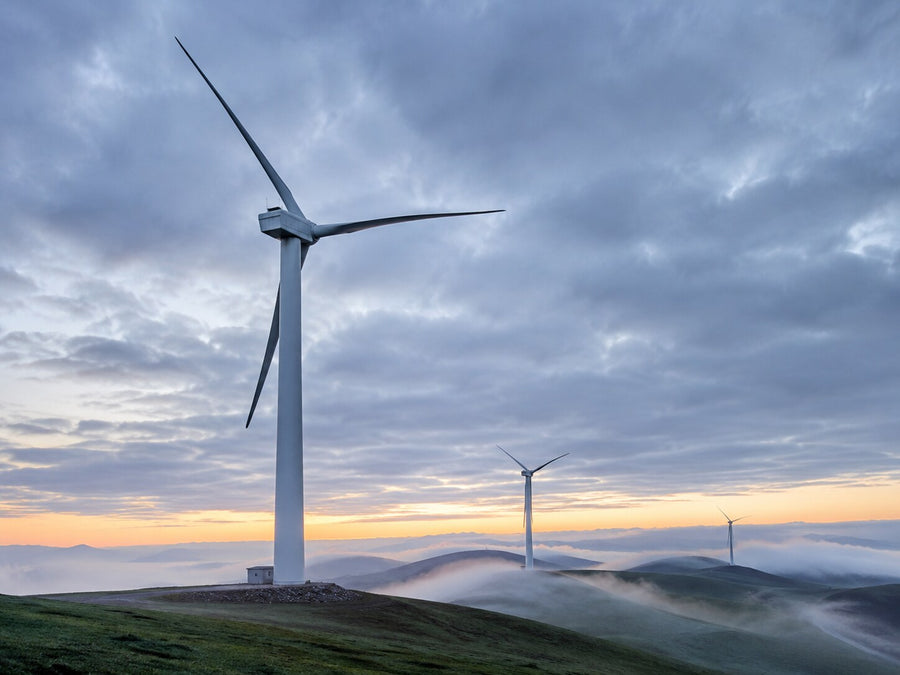

Wind power
Nacelle electronics, converters and tower control cabinets.

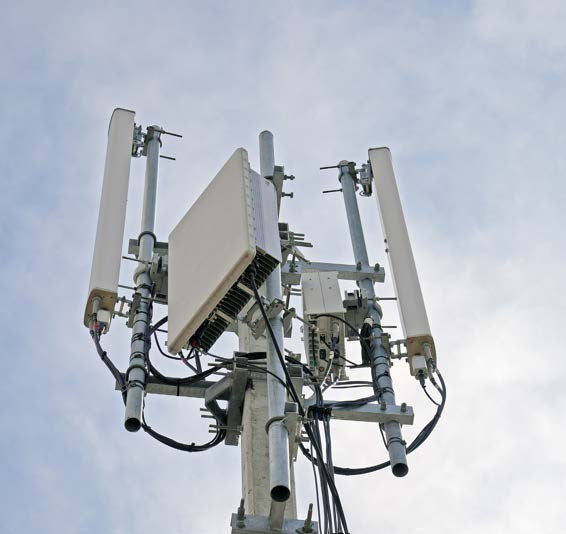

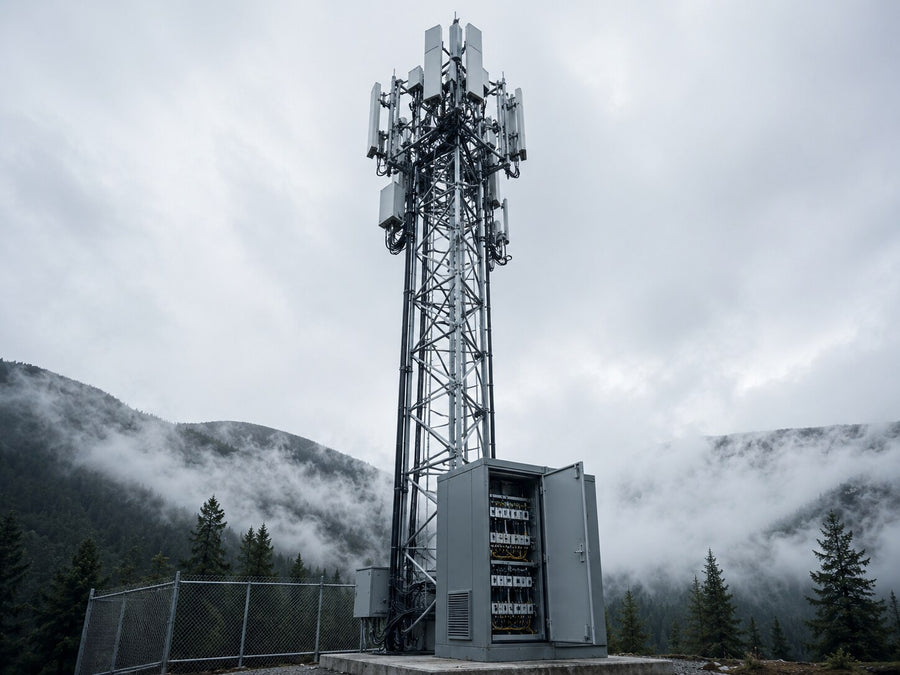

5G & telecom
Base stations, remote radio units and outdoor equipment cabinets.

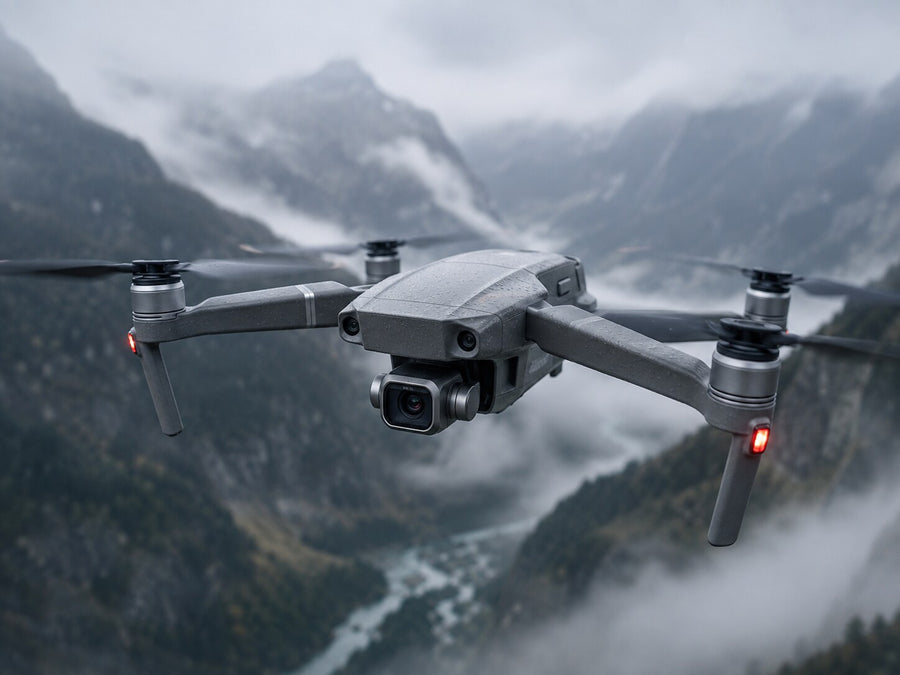

Drones & optics
Gimbal camera modules and lens cavities that fog on descent.

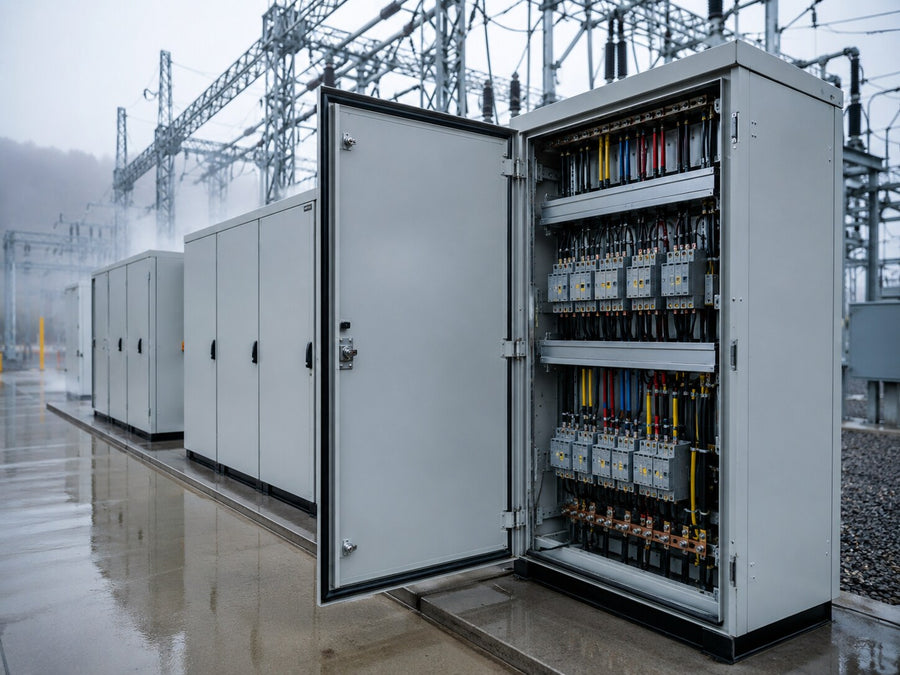

Power distribution
Outdoor switchgear, control cabinets and ring main units.
Full technical specifications
| Water absorption (40 °C, RH 95 %) | ≥ 2.1 g/pack · no water seepage at saturation |
| Water absorption rate | ≥ 0.09 g/hr/pack |
| Water release rate | ≥ 0.08 g/hr/pack |
| Operating temperature | −55 °C storage / 125 °C high-temp limit |
| Humidity & heat lifespan | 85 °C, RH 85 %, 1000 hrs |
| Temperature cycling lifespan | 1600 cycles (−55 to 110 °C) |
| High-temp aging | 110 °C, 1000 hrs |
| Vibration & impact | 5–200 Hz sine · 50 m/s², 11 ms half-sine, 600 impacts — no detachment |
| Swelling | Thickness < 20 % · length & width < 10 % · total height < 5.4 mm |
| Adhesive (3M backing) | Bonding > 0.4 N/mm · shear > 16 kPa · ≥ 70 % retention after aging |
| Halogen & corrosion | Chlorine and bromine < 900 ppm · non-corrosive to steel, brass, magnesium and aluminium · mold level 1 |
| Construction | 2-way humidity-control fibre core in a microporous breathable film; high flame-retardancy outer enclosure |
| Compliance | RoHS — Pb, Hg, Cd, Cr, PBB, PBDE, DEHP, BBP, DBP, DIBP |
Specifications subject to refinement. Custom RH set-points, pack sizes and die-cut formats available on request.
Start with a sample.
Send us the enclosure and the target RH. We come back with a pack size, a set-point and volume pricing.
Anti-condensation fiber pack for EV, energy storage, solar, wind, 5G and outdoor power
ATMOSIScience's anti-condensation fiber pack delivers bidirectional 2-way humidity control for the sealed electrical microenvironments inside electric vehicles, battery energy storage systems, EV charging stations, solar inverters, wind turbine nacelles, 5G telecom cabinets, drone camera modules and outdoor switchgear. The breathable fibre core absorbs and releases moisture to prevent condensation, extending component life across day-night temperature swings.
